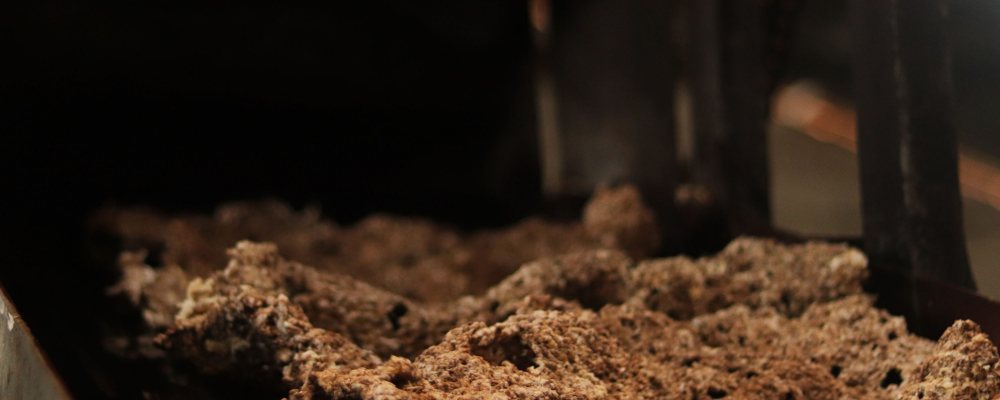

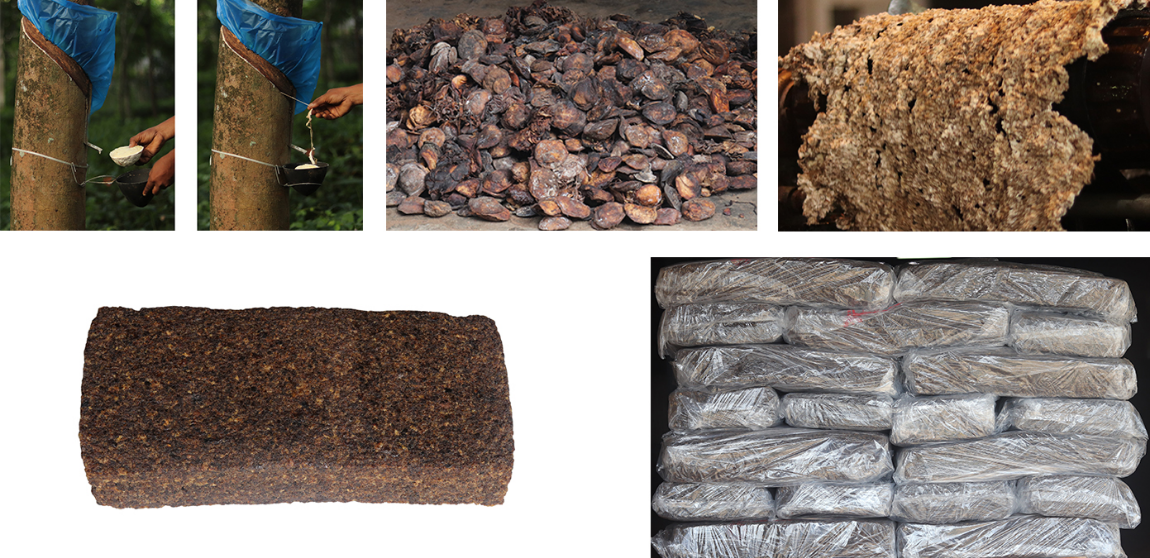

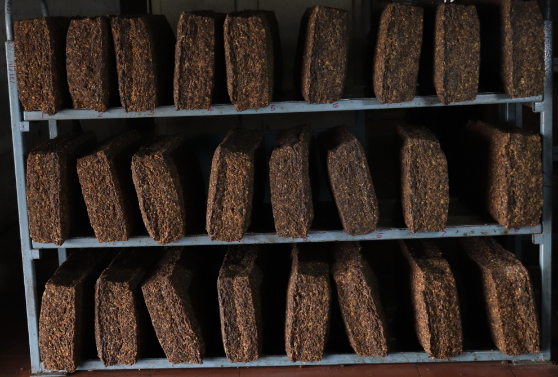

Field coagulam and unsmoked sheet are the raw materials for processing ISNR. Field coagulam consists of cup lumps and tree lace removed at the time of tapping of rubber trees. These raw materials are soaked in water and passed through various machines for cleaning and drying. It is then pressed into blocks of size 690 x 330 x 150 mm, weighing 25 Kgs and packed in LDPE covers.



 Process flow chart

  Click here


 Process Interaction Chart

 Click here



Indian Standard Natural Rubber is graded as ISNR 5, ISNR 10, ISNR 20 etc. as per quality specifications. The grading is as per technical standards and ISNR has better consistency in quality than other forms of dry rubber.

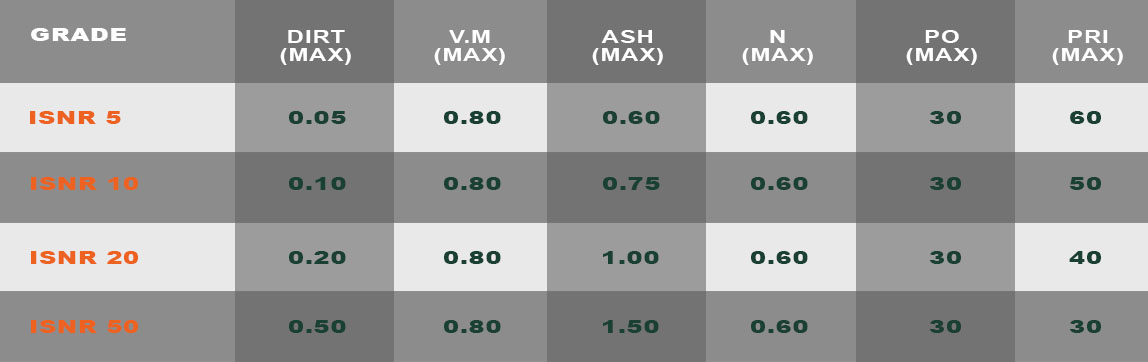

SPECIFICATION OF ISNR GRADES


Packing

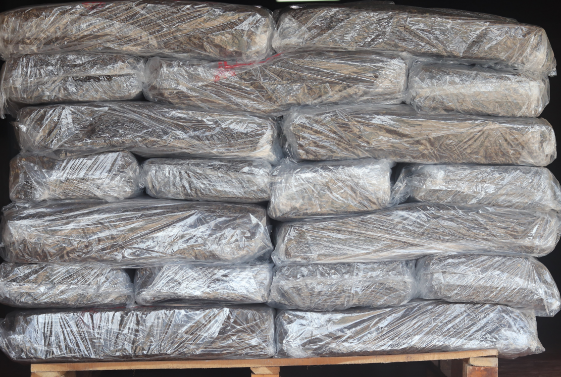

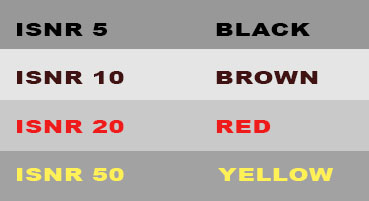

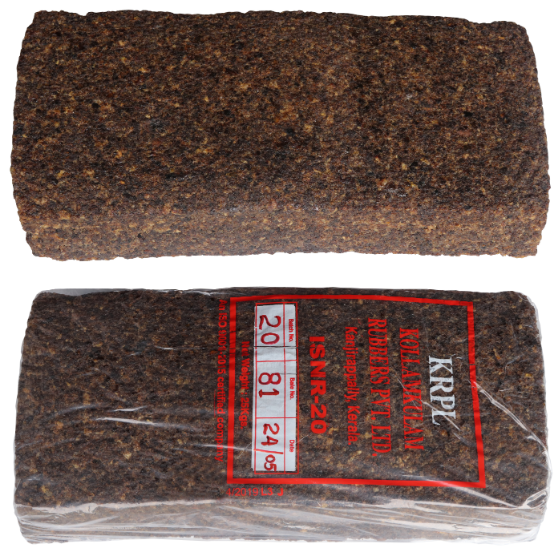

25 Kg blocks of ISNR are double packed in 0.03 + .01 mm thick LDPE covers with melting point below 109 degree C. Inner cover is printed with details and outer is plain. Outer cover, used for protection from dirt on transportation, is removed before use by consumers. There is colour code for each grade for package printing :



We follow a standard packing procedure to ensure that our rubber reach customers in the best possible conditions. Strict safety and quality standards are set and followed so that the end product that reaches the customer is not only fit for immediate use but is also capable of withstanding the harsh conditions that it might be subjected to during the shipment process especially during the monsoon season. For export, we brand our product as Indian Natural Rubber by affixing branding stickers issued by the Rubber Board after their quality evaluation.
